Simulator of Cylindrical Grinding

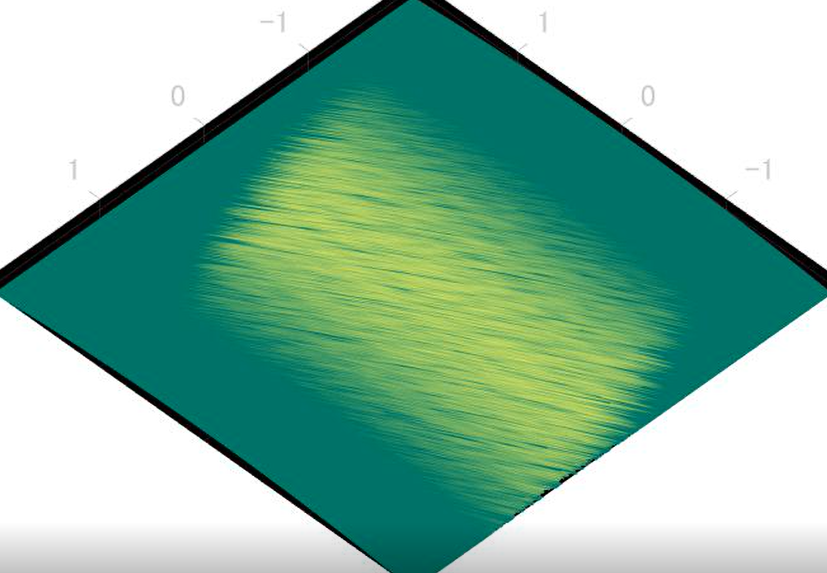

This grinding simulator is employed to estimate material removal sequence and grinding temperature in cylindrical grinding process. All the grits on a grinding wheel are taken into account to calculate the material removal which distinguishes this simulator from others in the field of abrasive process. The simulator provides various extensions.

Class

• grinding

General Order of Execution

1	grinding.crt_master_wheel
2	grinding.randomize
3	grinding.crt_wheel
4	grinding.crt_gear
5	grinding.crt_nodesinfo_cylindVer
6	grinding.make_gritfile
7	grinding.calc_grain_data
8	grinding.remake_grain_data
9	grinding.show_nodes
10	grinding.pcGen
11	grinding.make_statistics_data
12	grinding.calc_AbrasiveMachining_PyramidVer
13	grinding.link_matdata
14	grinding.link_data
15	grinding.analyze_data
16	grinding.save_wheelsurface
17	grinding.calc_GrainHeat
18	grinding.link_GrainHeat
19	grinding.calc_hmax
20	grinding.calc_q_fine_timestep
21	grinding.calc_sum_MRR_heatdata
22	grinding.calc_temperature_thermocouple_xy
23	grinding.calc_together_for_anim
